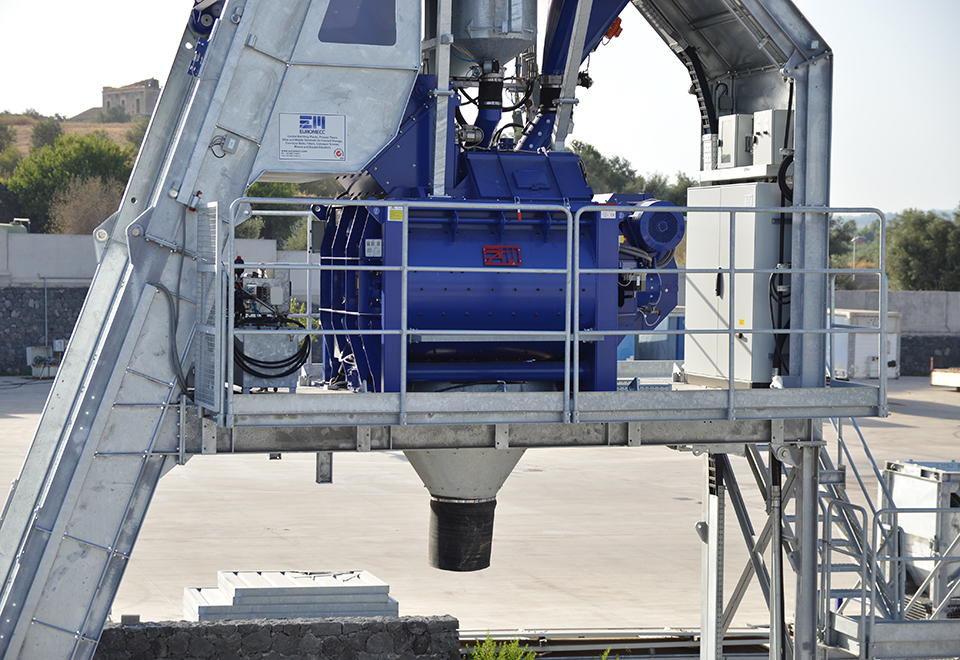

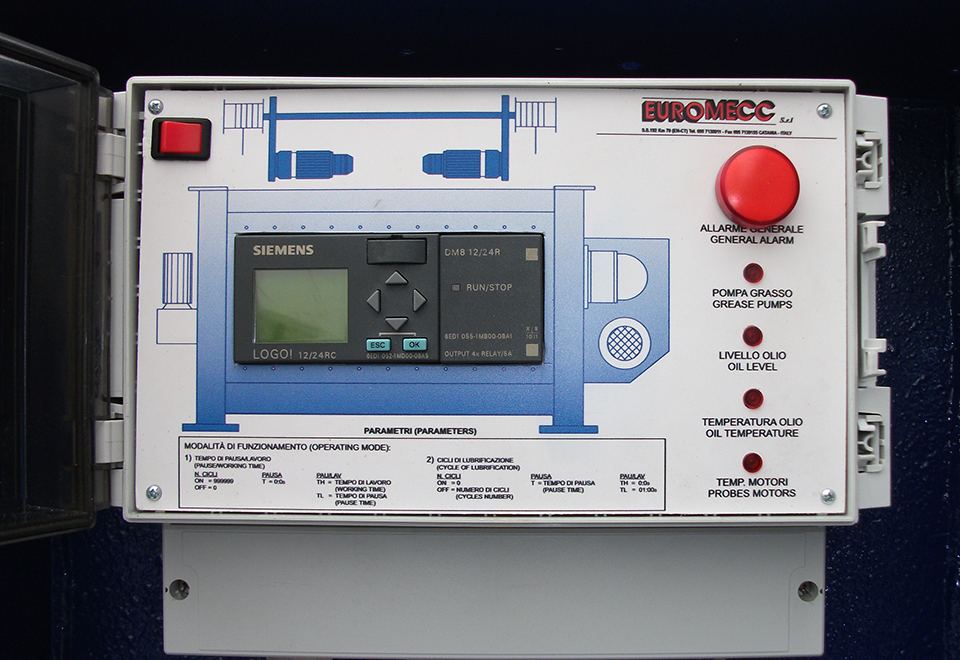

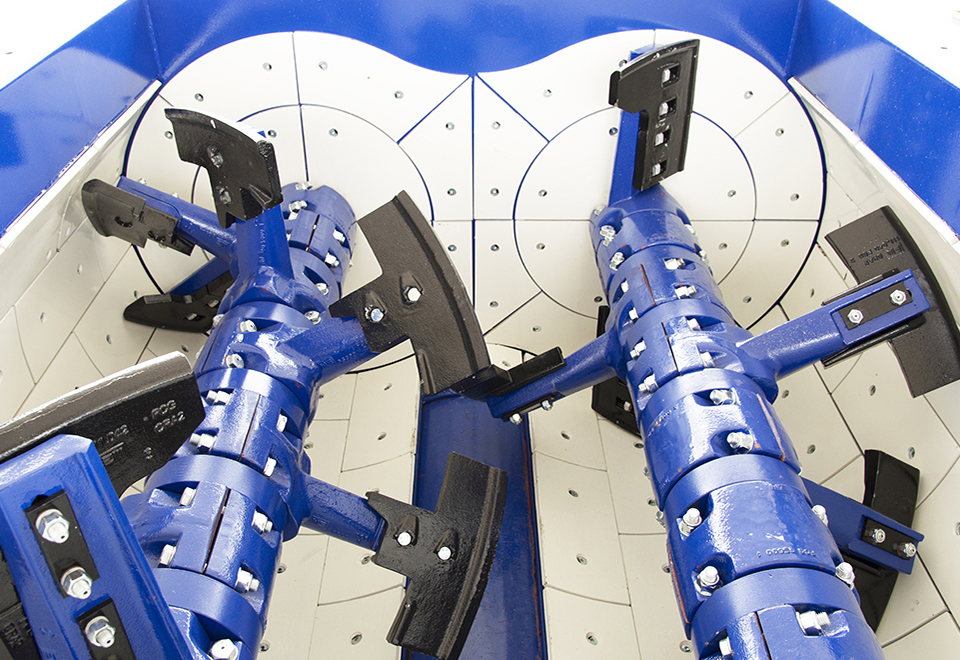

Twin shaft mixers MEB are composed of an omega-shaped tank, realized in elevated thickness plate, entirely tightened with structural tubing and coated with interchangeable wear plates. Mixing axles are activated by two electrical engines, placed on high position to make maintenance operations easier. Supports are in the external part of the bin to avoid contact with the mixture and to make easier cleaning operations. All shafts are screwed to the axle for a simpler substitution. The greasing system includes the distribution of grease in the most important points of the mixer. All the points to be greased are located in a single zone of the mixer. The discharge gate is provided with limit switches to signal the partial or total opening and closing. The mixer cover is provided with a wide inspection hatch with protection grid, dust seal and second door. A hydraulic hand pump enables to open the discharging gate in case of emergency.
STRENGHTS
- Production of high-quality concrete with a low water/cement ratio;
- Equal distribution of the cement throughout the dough with a consequent reduction in the dosage of the cement with the same strength of the concrete;
- Low maintenance costs;
- Impact resistant mixing blades in HARDOX 500 HN thickness 20 mm;
- Large inspection hatch, complete with protection grid, dust seal and secondary door.
STRENGHTS
- Production of high-quality concrete with a low water/cement ratio;
- Equal distribution of the cement throughout the dough with a consequent reduction in the dosage of the cement with the same strength of the concrete;
- Low maintenance costs;
- Impact resistant mixing blades in HARDOX 500 HN thickness 20 mm;
- Large inspection hatch, complete with protection grid, dust seal and secondary door.
MEB 1500
| TECHNICAL DATA | SI UNITS | VALUE |
|---|---|---|
| Dry capacity | It | 1500 |
| Fresh concrete output | It | 1200 |
| Vibrated concrete output | It | 1000 |
| Mixing motors power | kW | 2x18 |
| Hydraulic power | kW | 1x9,2 |
| Skip motor power | kW | 1x11 |
| Mixing arms | n. | 14 |
| Empty weight (without skip) | kg | 4500 |
| Empty weight (with skip) | kg | 6200 |
MEB 2250
MEB 2500
MEB 3000
MEB 3750
MEB 4500
MEB 5000
MEB 6000
MEB 7500
MEB 9000
MEB 12000
